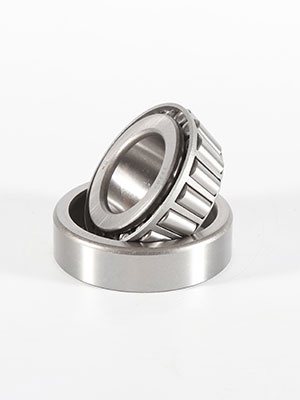

Tapered Roller Bearing

Tapered roller bearing is composed of separable outer ring and inner ring. Moreover, the outer ring and inner ring of the same bearing type can be interchangeable. Tapered roller bearings are widely used because it can bear large radial and axial forces at the same time.

Explain

Processing size range	The inner diameter is Φ 15 ~ Φ 50mm, and the outer diameter is Φ 40 ~ Φ 100
Accuracy class	Accuracy grade: P0 ~ p6x
Vibration level	Z1
Service temperature	-30~200℃
Contact angle	The outer ring and inner ring assembly are interchangeable

All kinds of non-standard tapered roller bearings can be customized in a short time according to customer requirements.

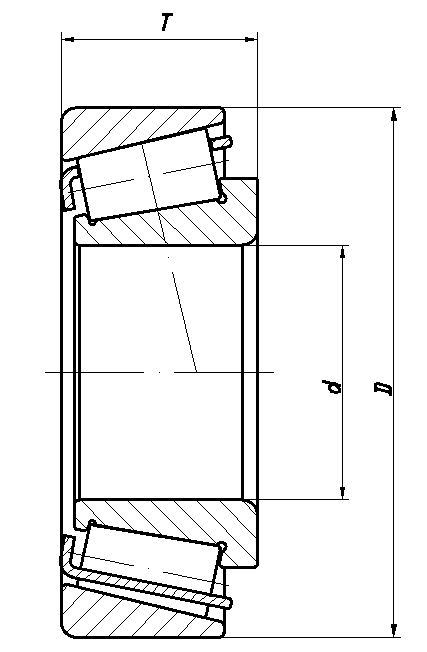

Product sketch

Serial number	model	internal diameter d	external diameter D	Assembly height T	Rated load		Limit speed(r/min)
Serial number	model	internal diameter d	external diameter D	Assembly height T	dynamic loadCr(KN)	Static loadCor(KN)	Limit speed(r/min)
1	30203	17	40	13.25	19	18.6	15000
2	30204	20	47	15.25	32	28	12000
3	30205	25	52	16.25	35.5	33.5	10000
4	30206	30	62	17.25	46.5	44	8000
5	30207	35	72	18.25	58.5	56	7500
6	30208	40	80	19.75	71	68	6500
7	30209	45	85	20.75	76.5	70.5	6000
8	30210	50	90	21.75	86.5	91.5	5500
9	32004	20	42	15	28	27	13000
10	32205	25	52	19.25	41.5	44	10000
11	32206	30	62	21.25	58.5	57	8000
12	32207	35	72	24.25	76.5	78	7500
13	32208	40	80	24.75	85	86.5	6500
14	32209	45	85	24.75	91.5	98	6000
15	32210	50	90	24.75	95	100	5500
16	32304	20	52	22.25	51	45.5	11000
17	33205	25	52	22	54	56	10000
18	33206	30	62	25	75	76.5	9000
19	33207	35	72	28	96.5	106	7500
20	33208	40	80	32	120	132	6500
21	33209	45	85	32	108	143	5500
22	33210	50	90	32	114	160	5000

Wuxi Bokai light Bearing Co., LtdAddress：No.8, Chunlei East Road, Xishan Economic Development Zone, Wuxi CityTel：0510-85221075 85220360Email：jswx_bk@163.com
